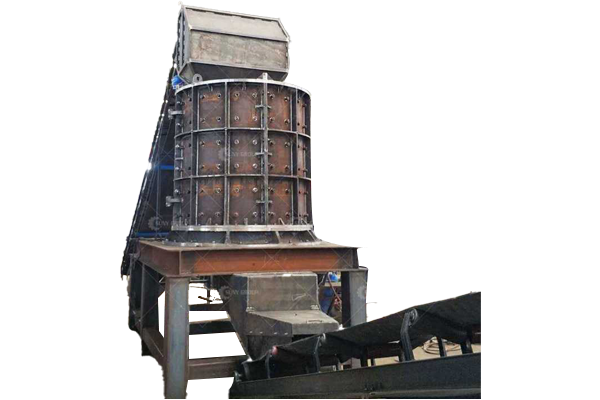

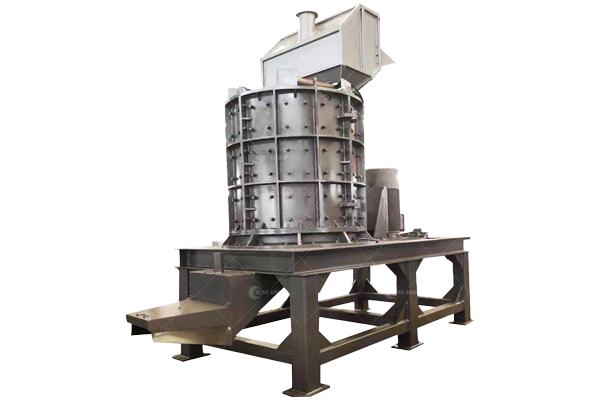

Vertical Hammer Crusher

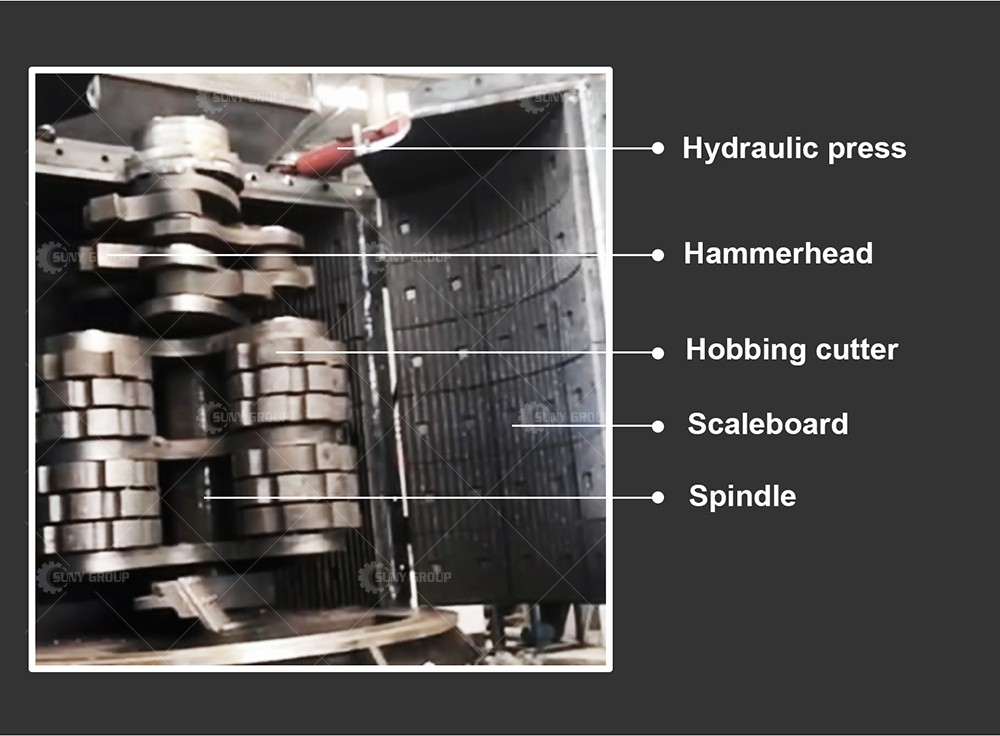

Vertical hammer crusher is composed of motor, shaft, hammer, machine body, turnplate, hydraulic system, control box, etc.

Product introduction

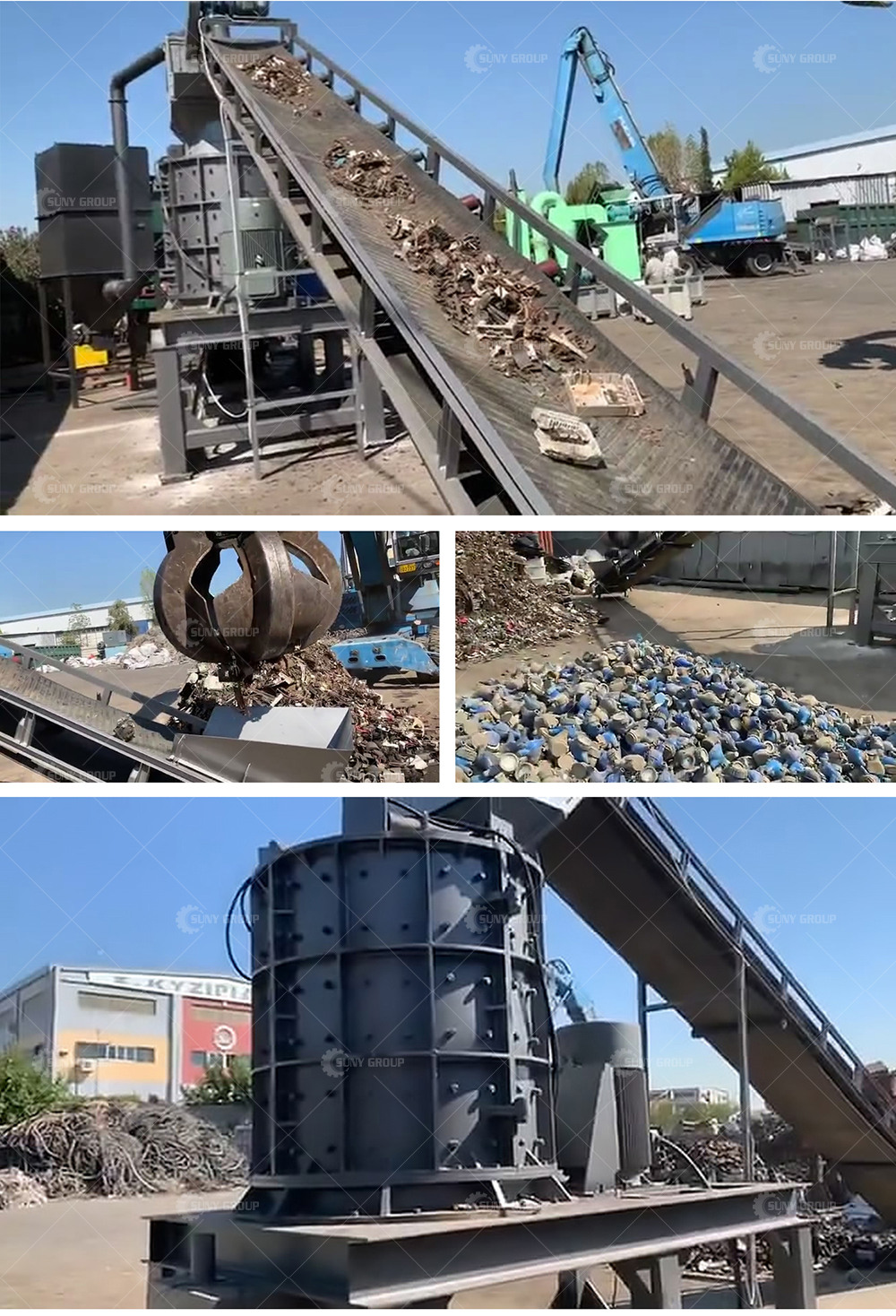

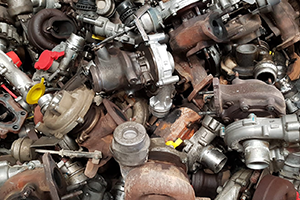

Vertical hammer crusher is mainly used in the fields of scrap metal recycling, to clean out the different materials on metal surface and separate different metals out for further processing.

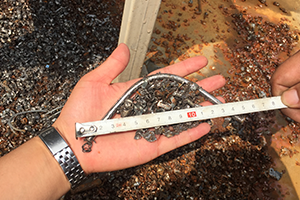

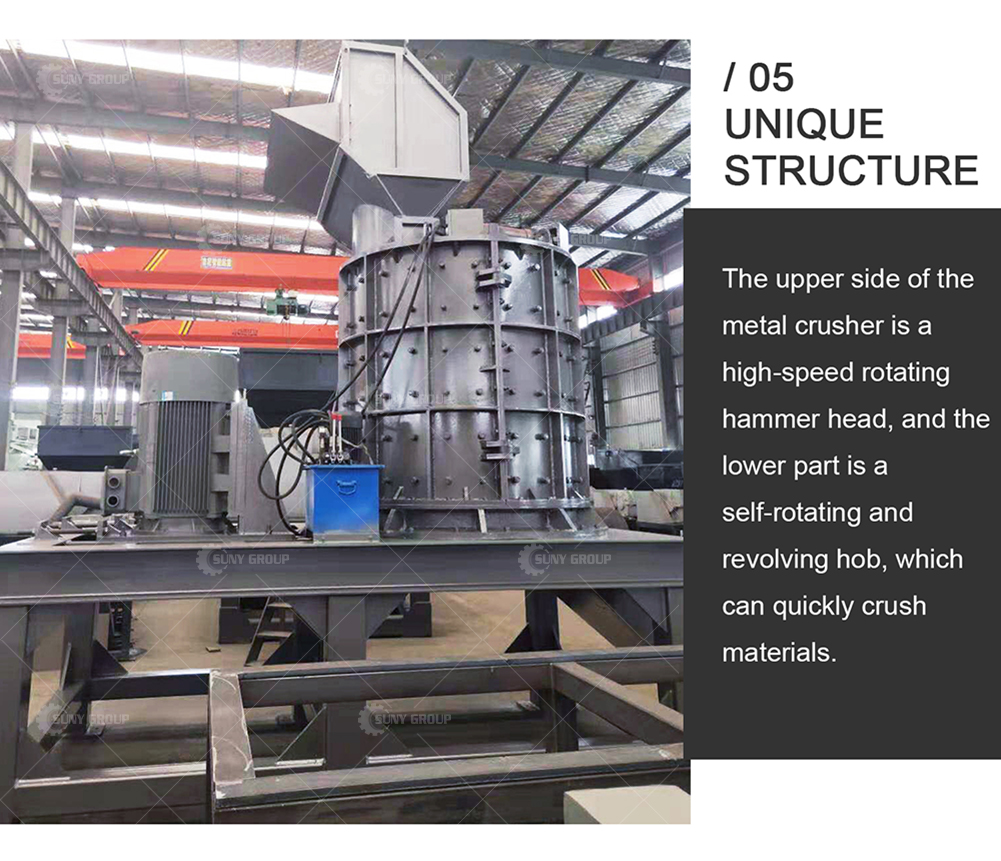

Hammers will crush materials into the crushing chamber between hob plate and wear resistant lining plate. Through the hob grinding, metal surface will be clean and different materials are separated out. Then materials get into discharge hopper through the clearance of hob plate and machine body, and discharged finally. The final metal particle is easy to transport, reduce transportation and storage cost.

Product advantages


High strength welding casing;

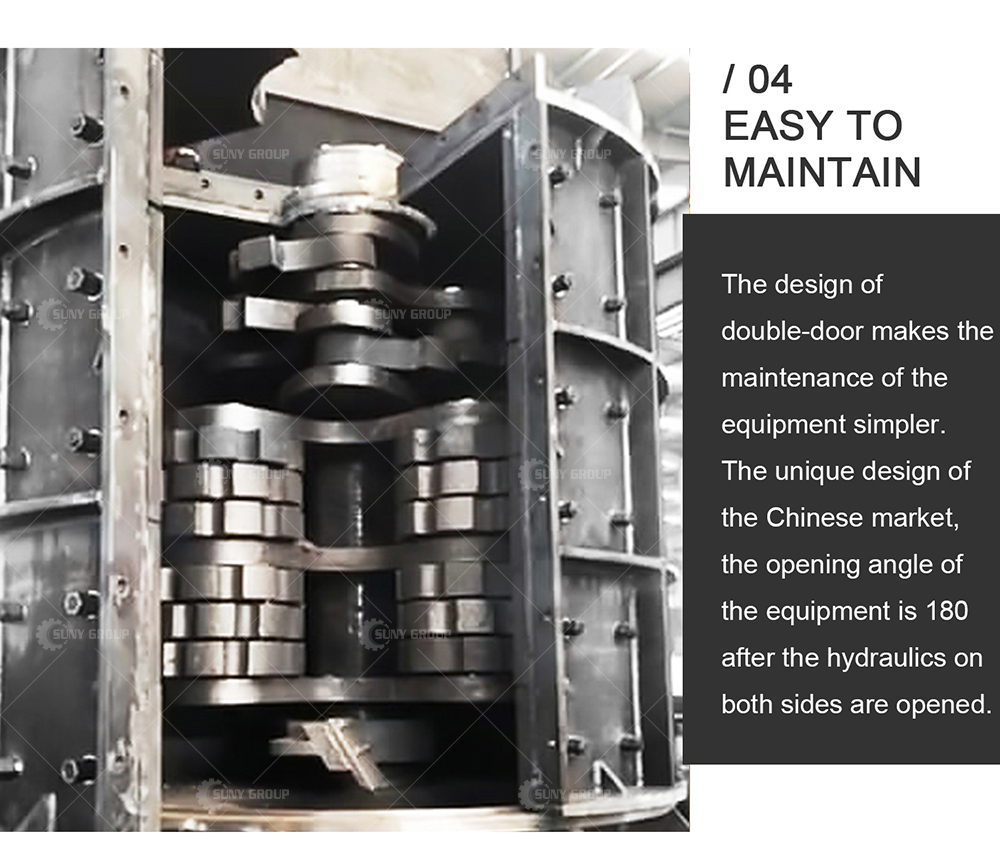

Vertical opposite casing, easy to maintain;

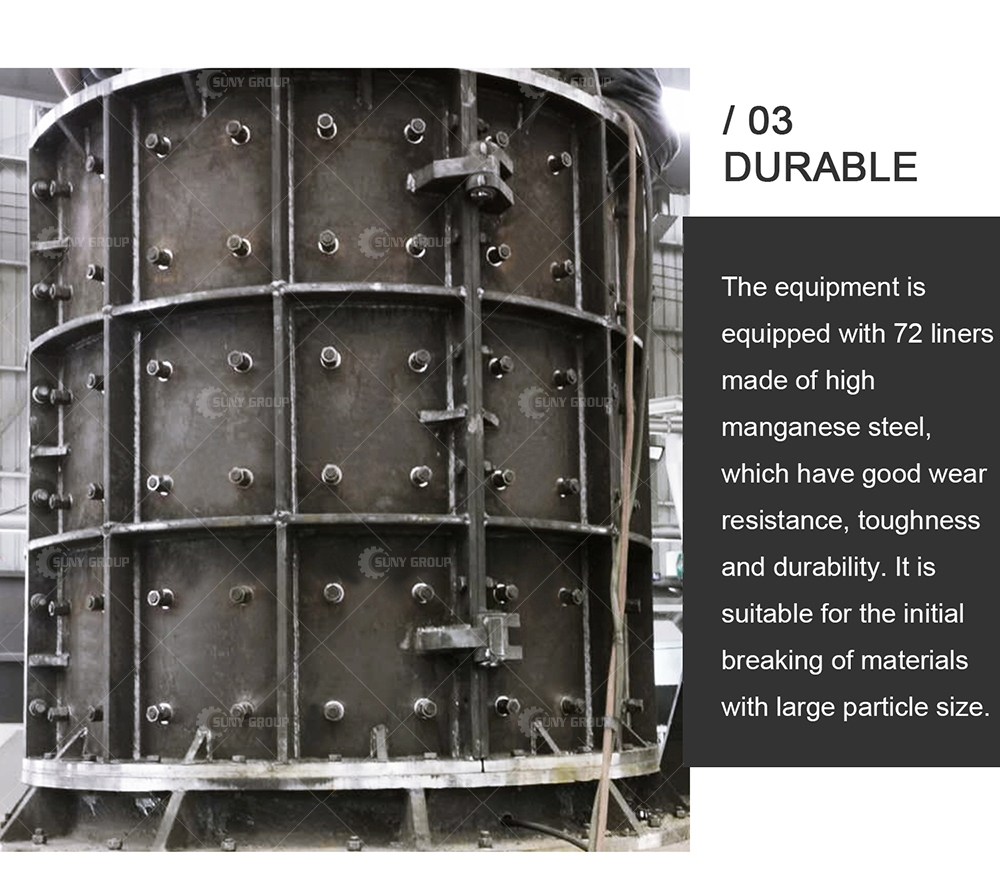

High tenacity wear resistant steel casting hammer, hob and lining plate, easy change and long service life;


High usage coefficient bearing, reduce bearing failure caused by improper operation;


The output size can adjust;


 Independent electrical control box, PLC control.

Technical parameter

Model HNVC1200 HNVC1500 HNVC2000 HNVC2500
Motor Power 75-200 Kw 75-200 Kw 75-200 Kw 75-200 Kw
Hydraulic Station Power 1.5 Kw 2.25 Kw 2.25 Kw 2.25 Kw

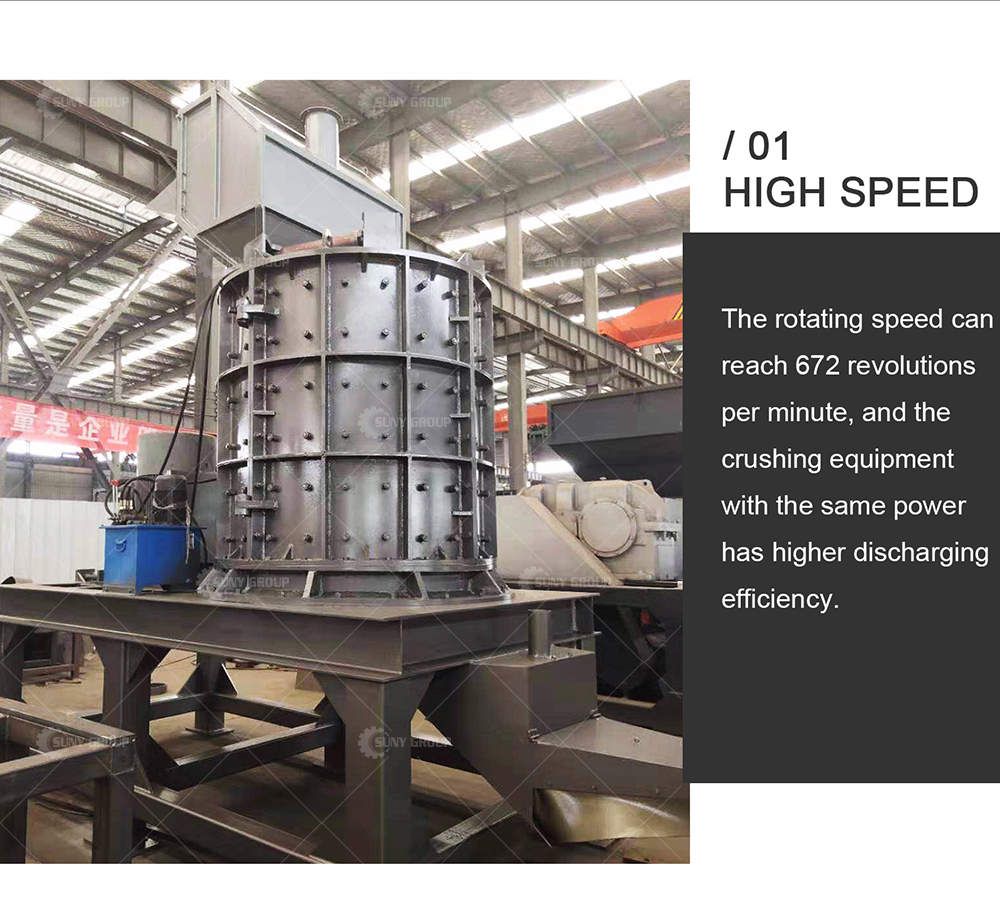

Rotation Speed 500-900 RPM 500-900 RPM 500-900 RPM 500-900 RPM
Hammer 2-36 PCS 2-36 PCS 2-36 PCS 2-36 PCS
Moving Blade 2-36 PCS 2-36 PCS 2-36 PCS 2-36 PCS
Dimension L/W/H 3000*3200*3500 mm 3300*3500*4000 mm 4300*3800*4500 mm 5000*4100*5000 mm/td>
